Examining Sequence Effects Using Nonlinear Dynamics - UPDATE

Barbara Frey & Keith Clayton

FreyBA@ctrvax.vanderbilt.edu & ClaytoKN@ctrvax.vanderbilt.edu

Vanderbilt University
301 Wilson Hall, Nashville, TN, 37240
telephone: (615) 322-0060 fax: (615) 343-8349



Click here to return to the original conference paper.

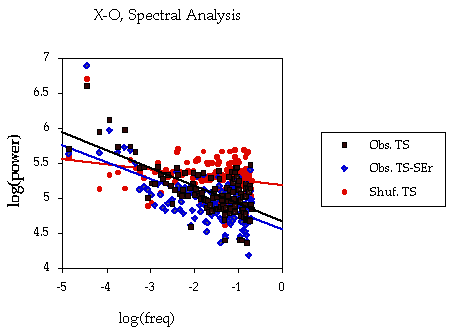

     Figure 4.  Fast Fourier Transform, X-O classification task (n=12).

Table 3. Results from the FFT analysis and the BDS statistic.
StatisticsObs. TSObs. TS - SErShuf. TS
FFT - flat or zero slope suggests - white noiseslope = -.254slope = -.244slope = -.077
BDS - tests if the hypothesis of IID can be rejected9 z-scores > 1.96; p<.05>8 z-scores > 1.96; p<.05>1 z-score > 1.96; p<.05>

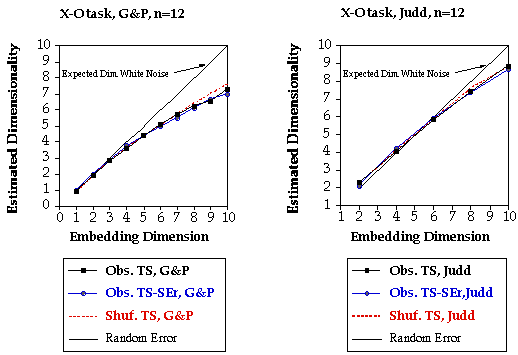

     Figure 5.  Dimensionality Estimates (n=12) using Grassberger & Procaccia (1983)
     algorithm (left) and Judd (1992, 1994) algorithm (right).  Thin solid line
     corresponds to the expected dimensionality estimate of white noise.

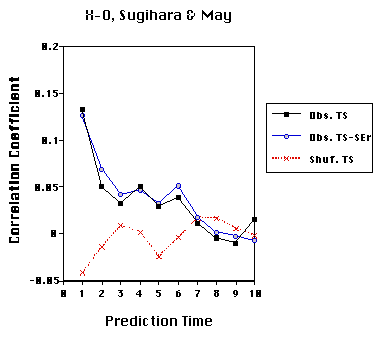

     Figure 6.  Predictability as prediction time increase (n=12), lag=1, Sugihara & May
     (1990).

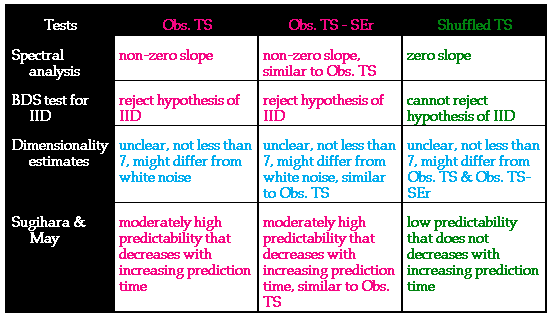

Table 4. Summary of Results.

Update Notes

During the intervening time, I have had the opportunity to apply the discussed tests to the remaining 11 participants' data sets. All but the dimensionality conclusions appear to be supported. The results from the dimensionality tests do not suggest a difference between the three file types and neither observed time series appears to have a dimensionality less than 7. Click here to return to the original conference paper.
